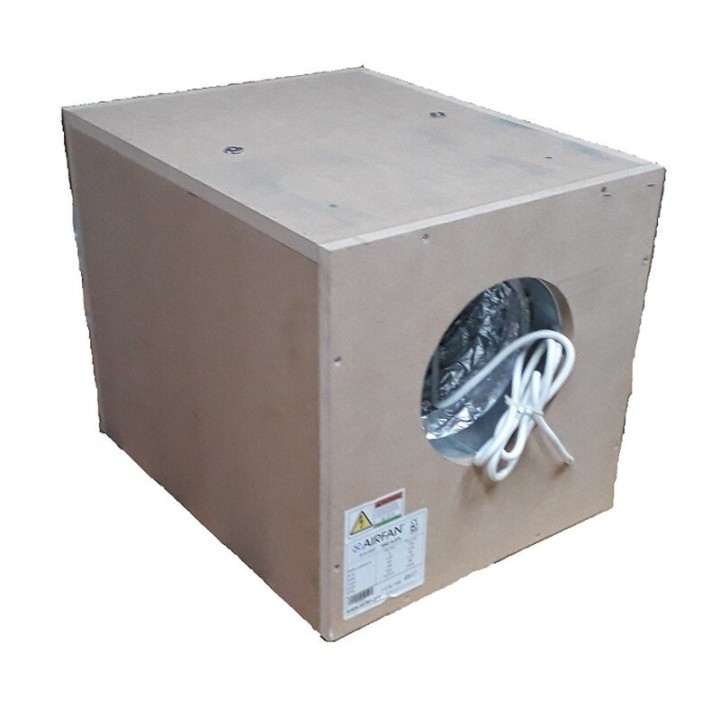

Extractor Box 550 m³/h
Soundproof Casing Extractor Torin 550 m³/h.
Because the centrifugal fans are suspended in rubbers, they do not make direct contact with the housing, so that no vibration transfer takes place. A quieter operation is guaranteed.
The sound-damping boxes are equipped with our centrifugal fans and insulated with qualitative, durable, sound-absorbing bubble foam. They are designed to operate under the high available pressure, have a very low noise level and are intended to be switched in round air ducts.
- Capacity: 550 m³ / h.
- Dimensions: 40 x 40 x 50 cm.
- Weight: 17 kg.
- Inlet diameter: 200 mm
- Output diameter: 200 mm.
- Decibels - 50% speed: 22 db.
- Decibels - 100% speed: 30.6 db.
- Supplied with suspension hooks and plug.
Only store pickup in Framont.
